Basic Information | ||
Supported CPU | Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package | |
Chipset | Intel H410 Express Chipset | |
BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Form Factor | Micro ATX Form Factor: 22.6cm x 18.5cm | |
Expansion Slots | ||
PCI | 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots | |
M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/ x2 SSD support) | |
Memory | ||
Type | DDR4 | |
Slots | 2 x DIMM | |
Supported Memory | Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules | |
Maximum Memory | 64GB (32 GB single DIMM capacity) | |
Graphics | ||
Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz 1 x HDMI ports, supporting a maximum resolution of 4096 x 2160 @30 Hz | |
Max Shared Memory | 512MB | |
Connector & Ports | ||
HDMI | 1 x HDMI ports, supporting a maximum resolution of 4096 x 2160 @30 Hz | |
D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz | |
USB (s) | 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/ 1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
LAN Port (s) | Intel GbE LAN chip (1 Gbit/100 Mbit) | |
Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe x4/ x2 SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready | |
Audio | Realtek Audio CODEC High Definition Audio 2/ 4/ 5.1/ 7.1-channel | |
Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper | |
TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
Others | ||
Special Features | Support for APP Center @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install | |
Warranty Information | ||
Manufacturing Warranty | 03 Years |
The GIGABYTE H410M H V3 10th & Gen Micro ATX Motherboard is made for Intel 10th and Generation processors. The GIGABYTE H410M H V3 Gen Motherboard has two DIMM RAM slots available which can support Bus Speeds of up to 2933MHz. The motherboard supports HDMI and D-Sub graphical output ports and can display two displays at once. The GIGABYTE motherboard also comes with 8-Channel HD Audio with High-Quality Audio Capacitors which provides crystal clear sound all around. The mother also provides you with NVMe PCIe Gen3 x4 2280 M.2 Connector, Intel GbE LAN with cFosSpeed Internet Accelerator Software, and more.
Intel GbE LAN features cFosSpeed, a network traffic management application that helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

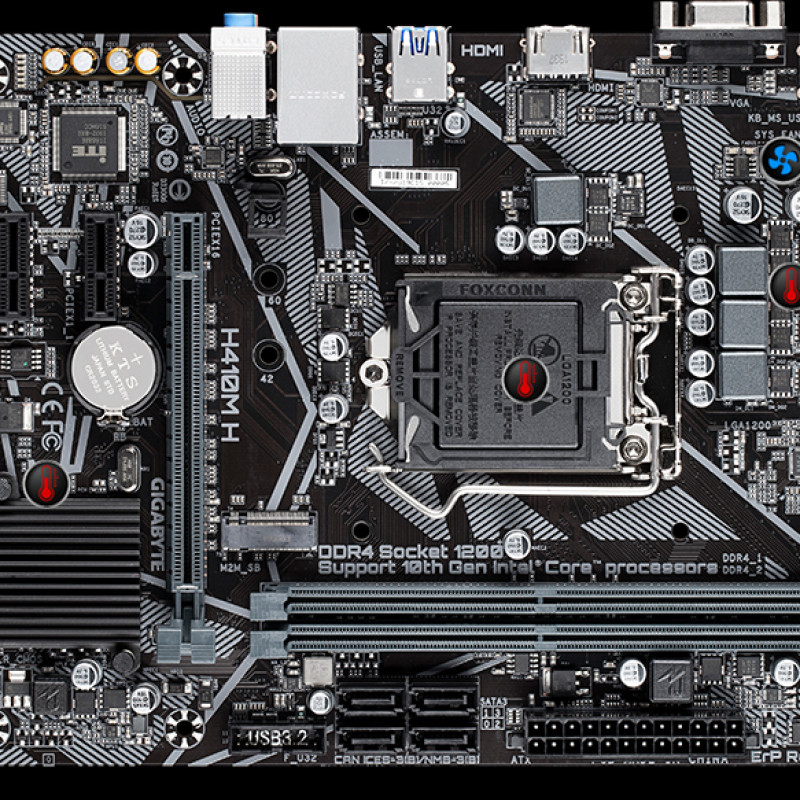

With Smart Fan, 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan, 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature, all of it can be customized to your liking.
GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning. GIGABYTE motherboards also feature special anti-surge IC that protect your motherboard, helping to ensure that your PC is equipped to deal with any potentially irregular electrical spikes. There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material that reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuits and system malfunction caused by humid and damp conditions. GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier-to-use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
