| CPU | Intel Socket 1155 for 2nd and 3rd Generation Core i7 / Core i5 / Core i3 / Pentium / Celeron Processors Supports Intel 32 nm CPU Supports Intel 22 nm CPU Supports Intel Turbo Boost Technology 2.0 |
| Chipset | Intel H61 (B3) |
| Memory | 2 x DIMM, Max. 16 GB, DDR3 2200 (O.C.) / 2133 (O.C.) / 2000 (O.C.) / 1866 (O.C.) / 1600 / 1333 / 1066 MHz Non-ECC, Un-buffered memory dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) |
| Graphics | Integrated graphics processor VGA output support: RGB port Supports RGB with maximum resolution 2048 x 1536 @ 75 Hz |
| Expansion Slots | 1x PCIe 3.0 / 2.0 x16 3x PCIe 2.0 x1 |
| Storage | Intel H61 (B3) chipset: 4x SATA 3 Gbps port(s), blue |
| LAN | Realtek, 1x Gigabit LAN controller |
| Audio | Realtek ALC887 8-Channel High Definition Audio CODEC |
| USB Ports | Intel H61 (B3) chipset: 8x USB 2.0 ports (4 at back panel, black, 4 at mid-board) |
| Overclocking Features | Overclocking Protection: ASUS C.P.R. (CPU Parameter Recall) |
| Special Features | ASUS EPU: - EPU ASUS Digital Power Design: - Industry leading digital 3 + 1 + 1 Phase power design - ASUS DIGI+ VRM utility ASUS Exclusive Features: - AI Suite II - Anti-Surge - Low EMI solution - ASUS UEFI BIOS EZ mode featuring friendly graphics user interface - Network iControl ASUS Quiet Thermal Solution: - Stylish fanless design heat-sink solution - ASUS Fan Xpert ASUS EZ DIY: - ASUS Crash Free BIOS 3 - ASUS EZ Flash 2 - ASUS My Logo 2 High-quality conductive polymer capacitors |

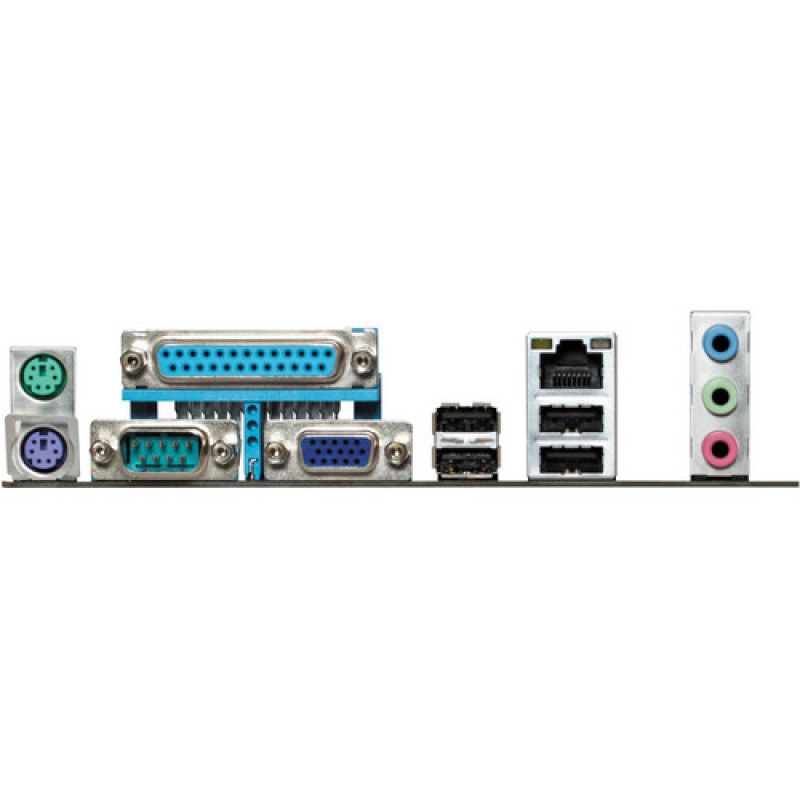

| Back I/O Ports | 1x PS / 2 keyboard (purple) 1x PS / 2 mouse (green) 1x D-Sub 1x LAN (RJ-45) port 4x USB 2.0 1x COM port 1x parallel port 3x audio jack |
| Internal I/O Ports | 2x USB 2.0 connector support additional 4x USB 2.0 ports 4x SATA 3 Gbps connector 1x CPU fan connector 1x chassis fan connector 1x S/PDIF out header 1x 24-pin EATX power connector 1x 4-pin ATX 12 V power connector 1x front panel audio connector (AAFP) 1x internal speaker connector 1x system panel |
| BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS 2.7, ACPI 2.0a, multi-language BIOS, ASUS EZ flash 2, ASUS CrashFree BIOS 3, F12 print screen, F3 shortcut function and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
| Support Disc | Drivers ASUS Utilities ASUS Update Anti-Virus Software (OEM version) |
| Form Factor | uATX |
| Dimensions | 9.6 x 7.2' (24.38x18.28 cm) |

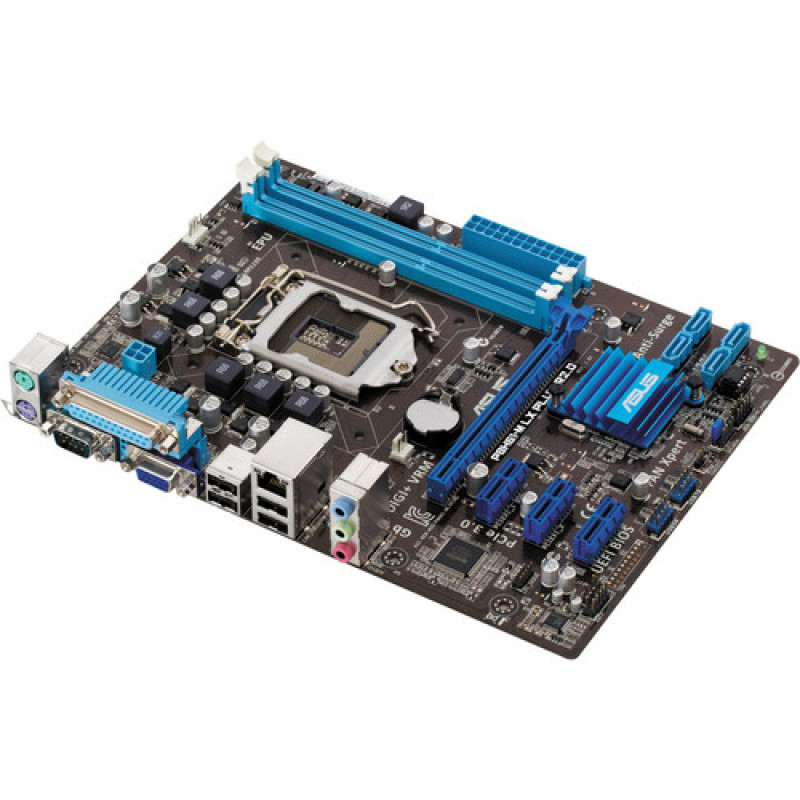

The P8H61-M LX Plus Rev. 2.0 Motherboard from Asus is a uATX form factor motherboard with the Intel socket 1155 for 2nd and 3rd Generation Core i7 / Core i5 / Core i3 / Pentium / Celeron processors. The motherboard is PCIe ready and supports 2-channel DDR3 memory and 16 PCIe 3.0 lanes.
The motherboard supports DDR3 memory that features data transfer rates of 2200 (O.C) / 2133 (O.C) / 2000 (O.C) / 1866 (O.C) / 1600 / 1066 / 1333 MHz to meet higher bandwidth requirements of the latest 3D graphics, multimedia and Internet applications.
With its fast user-friendly interface, the ASUS AI Suite II consolidates all the exclusive ASUS features into one simple-to-use software package. The all-in-one software offers diverse and easy-to-use functions, without the need to switch back and forth between different utilities. It allows you to supervise overclocking, energy management, fan speed control, voltage and sensor readings.
