Basic Information | ||
Supported CPU | Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package L3 cache varies with CPU | |
Chipset | Intel® H81 Express | |
BIOS | 2 x 64 Mbit flash Use of licensed AMI EFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Form Factor | Micro ATX Form Factor; 22.6cm x 17cm | |
Expansion Slots | ||
PCI | 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots (The PCI Express slots conform to PCI Express 2.0 standard.) | |
Memory | ||
Type | Dual channel DDR3 memory architecture | |
Slots | 2 x 1.5V DIMM | |
Supported Memory | Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules | |
Maximum Memory | 16 GB | |
Graphics | ||
Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200 | |
Max Shared Memory | 1 GB | |
Connector & Ports | ||
D-Sub (s) | 1 x D-Sub | |
USB (s) | Chipset: Up to 2 USB 3.0/2.0 ports on the back panel Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
LAN Port (s) | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
Supported Storage | Chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices 2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices | |
Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. | |
Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper | |
TPM (Trusted Platform Module ) | N/A | |
Warranty Information | ||
Manufacturing Warranty | 03 Years |

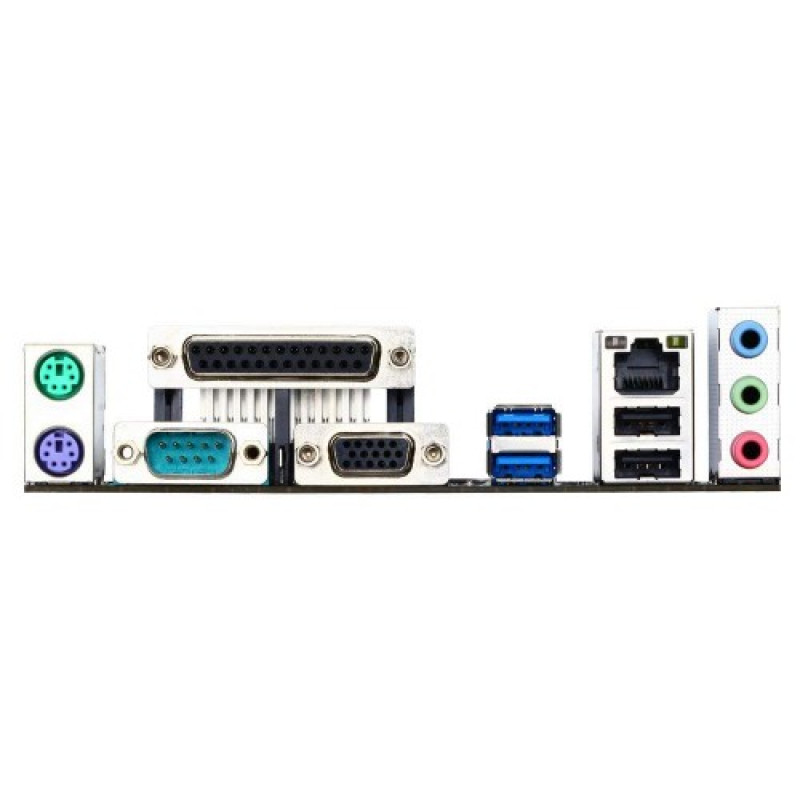

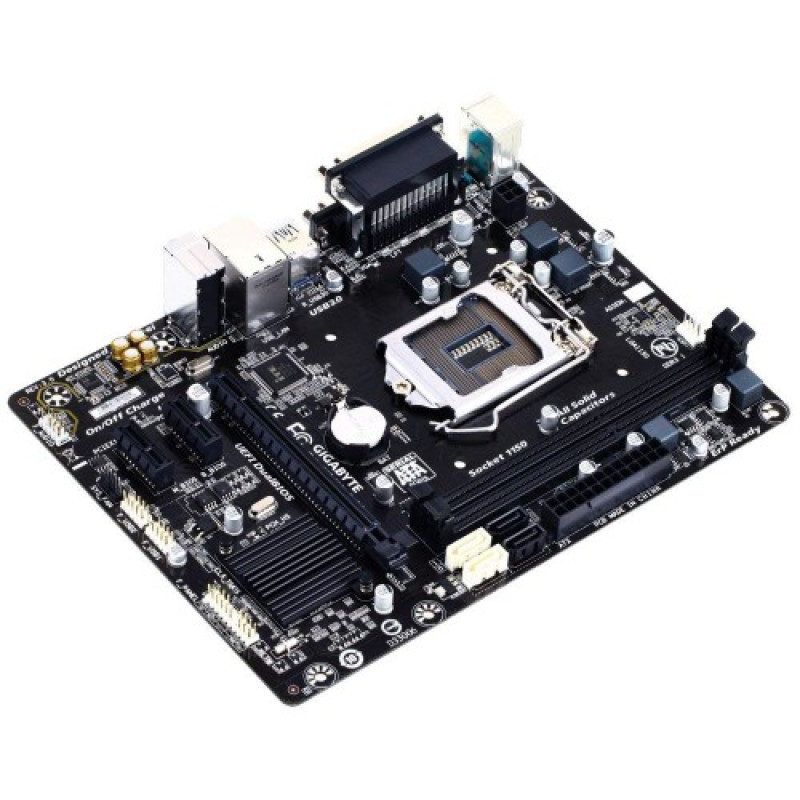

Gigabyte GA-H81M-DS2 Micro ATX ultra durable motherboard has the compatibility with 4th gen Intel processors. This board also supports dual channel DDR3 maximum 16GB memory and dual Ultra-Fast SATA interface. Focusing on the graphics, it has integrated Intel HD graphics with 1GB shared graphics memory containing the resolution of 1920x1200 Hz for D-Sub port. This basic motherboard has the facility of GIGABYTE On/Off Chargeâ„¢ for USB devices, LAN with high ESD Protection and USB 3.0 ports with GIGABYTE 3x USB power. This All solid capacitors design board also contain GIGABYTE UEFI DualBIOSâ„¢ Technology and LPT, COM, D-SUB port on rear panel.
Purchase high quality basic Gigabyte boards within your range, available at best price at Star Tech. We provide the best service for every customer. Online shopping have made our life very easy to buy our desired item to build your dream PC.
